GFEVT1500-74E 高速熔斷器100A-1250A 1500Vdc

[附件: Download]

Dimensions (mm)

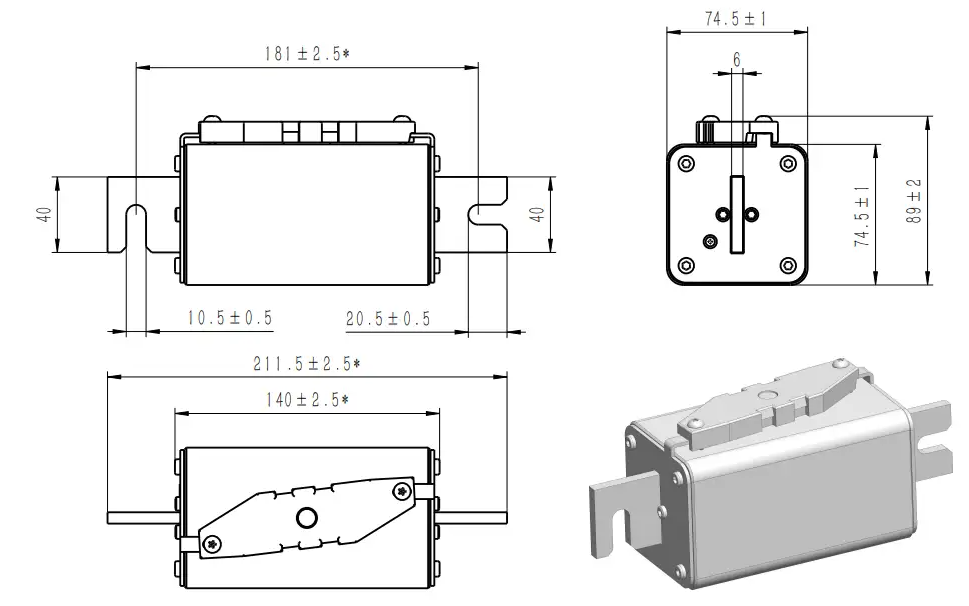

Bolted xxxB-74E Dimensions

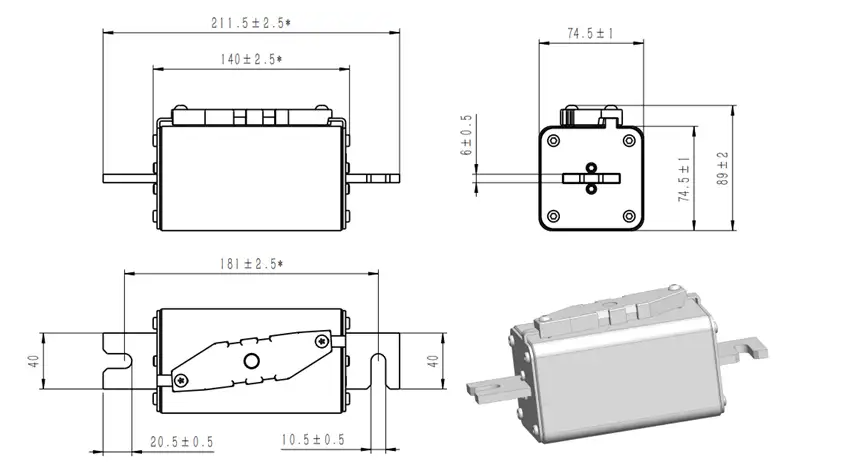

Customize xxxK-74E Dimensions

Din xxxU-74E Dimensions

Description

Designed for DC applications
Excellent DC performance
Superior cycling capability
Low watt losses

Standards & Approvals

Refer to UL 248.1 / UL 248.13
IEC 60269.1 / IEC 60269.4
Reach declaration available upon request
RoHS compliant

Features & Benefits

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage
Up to ten times faster opening under high fault current conditions ensures reliable protection of circuits and components
Greater ampacity within sizing guidelines
Excellent resistance to voltaic impingement and environmental temperature tolerance
Exceptional resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect	Part No.	Fuse Amps	Average @250KA/1500Vdc		Power Loss (W)		Approvals
Connect	Part No.	Fuse Amps	A2s Melting	A2s Clearing	80%	100%	ROHS	REACH
Bolted	GFEVT1500-100B-74E	100A	1150	4680	48	60	●	●
	GFEVT1500-125B-74E	125A	1750	8350	52	68	●	●
	GFEVT1500-160B-74E	160A	3800	14000	68	90	●	●
	GFEVT1500-200B-74E	200A	5200	23500	82	110	●	●
	GFEVT1500-250B-74E	250A	10400	45000	92	120	●	●
	GFEVT1500-315B-74E	315A	21238	76760	104	136	●	●
	GFEVT1500-350B-74E	350A	29180	104691	113	148	●	●
	GFEVT1500-400B-74E	400A	38468	136083	130	171	●	●
	GFEVT1500-450B-74E	450A	54749	192815	143	187	●	●
	GFEVT1500-500B-74E	500A	74371	259379	155	204	●	●
	GFEVT1500-550B-74E	550A	93073	317075	169	221	●	●
	GFEVT1500-630B-74E	630A	131578	437610	189	248	●	●
	GFEVT1500-700B-74E	700A	182476	593977	202	273	●	●
	GFEVT1500-800B-74E	800A	283377	893774	218	294	●	●
	GFEVT1500-900B-74E	900A	408596	1247411	237	305	○	○
	GFEVT1500-1000B-74E	1000A	546988	1605152	282	362	○	○
	GFEVT1500-1100B-74E	1100A	751540	2129888	300	385	○	○
	GFEVT1500-1200B-74E	1200A	991418	2779209	305	391	○	○
	*GFEVT1500-1250B-74E	*1250A	1121162	3162024	314	401	○	○

Connect	Part No.	Fuse Amps	Average @250KA/1500Vdc		Power Loss (W)		Approvals
Connect	Part No.	Fuse Amps	A2s Melting	A2s Clearing	80%	100%	ROHS	REACH
Din	GFEVT1500-100U-74E	100A	1150	4680	48	60	●	●
	GFEVT1500-125U-74E	125A	1750	8350	52	68	●	●
	GFEVT1500-160U-74E	160A	3800	14000	68	90	●	●
	GFEVT1500-200U-74E	200A	5200	23500	82	110	●	●
	GFEVT1500-250U-74E	250A	10400	45000	92	120	●	●
	GFEVT1500-315U-74E	315A	21238	76760	104	136	●	●
	GFEVT1500-350U-74E	350A	29180	104691	113	148	●	●
	GFEVT1500-400U-74E	400A	38468	136083	130	171	●	●
	GFEVT1500-450U-74E	450A	54749	192815	143	187	●	●
	GFEVT1500-500U-74E	500A	74371	259379	155	204	●	●
	GFEVT1500-550U-74E	550A	93073	317075	169	221	●	●
	GFEVT1500-630U-74E	630A	131578	437610	189	248	●	●
	GFEVT1500-700U-74E	700A	182476	593977	202	273	●	●
	GFEVT1500-800U-74E	800A	283377	893774	218	294	●	●
	GFEVT1500-900U-74E	900A	408596	1247411	237	305	○	○
	GFEVT1500-1000U-74E	1000A	546988	1605152	282	362	○	○
	GFEVT1500-1100U-74E	1100A	751540	2129888	300	385	○	○
	GFEVT1500-1200U-74E	1200A	991418	2779209	305	391	○	○
	*GFEVT1500-1250U-74E	*1250A	1121162	3162024	314	401	○	○

Connect	Part No.	Fuse Amps	Average @250KA/1500Vdc		Power Loss (W)		Approvals
Connect	Part No.	Fuse Amps	A2s Melting	A2s Clearing	80%	100%	ROHS	REACH
Customize	GFEVT1500-100K-74E	100A	1150	4680	48	60	●	●
	GFEVT1500-125K-74E	125A	1750	8350	52	68	●	●
	GFEVT1500-160K-74E	160A	3800	14000	68	90	●	●
	GFEVT1500-200K-74E	200A	5200	23500	82	110	●	●
	GFEVT1500-250K-74E	250A	10400	45000	92	120	●	●
	GFEVT1500-315K-74E	315A	21238	76760	104	136	●	●
	GFEVT1500-350K-74E	350A	29180	104691	113	148	●	●
	GFEVT1500-400K-74E	400A	38468	136083	130	171	●	●
	GFEVT1500-450K-74E	450A	54749	192815	143	187	●	●
	GFEVT1500-500K-74E	500A	74371	259379	155	204	●	●
	GFEVT1500-550K-74E	550A	93073	317075	169	221	●	●
	GFEVT1500-630K-74E	630A	131578	437610	189	248	●	●
	GFEVT1500-700K-74E	700A	182476	593977	202	273	●	●
	GFEVT1500-800K-74E	800A	283377	893774	218	294	●	●
	GFEVT1500-900K-74E	900A	408596	1247411	237	305	○	○
	GFEVT1500-1000K-74E	1000A	546988	1605152	282	362	○	○
	GFEVT1500-1100K-74E	1100A	751540	2129888	300	385	○	○
	GFEVT1500-1200K-74E	1200A	991418	2779209	305	391	○	○
	*GFEVT1500-1250K-74E	*1250A	1121162	3162024	314	401	○	○
